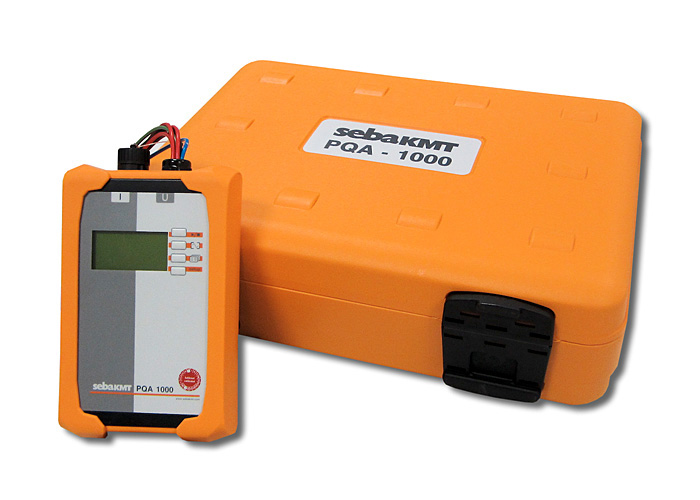

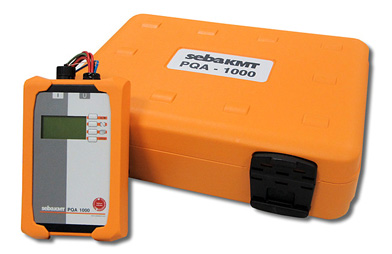

PQA 1000
The PQA 1000 is a high-performance, portable power analyzer, power meter and transient recorder in one single instrument. The PQA 1000 has been developed for mobile operation (degree of protection IP 65) and is intended for measurements in public networks (installation category CAT IV) as well as for measurements in industrial environments. The PQA 1000 meets the demands of the stringent IEC 61000-4-30 standard for a class-A device.

Key Benefits :

»
 High-Performance, portable Power-Quality Analyzer, Power Meter and Transient Recorder
»
 Automatic detection of the type of connected current clamp
»
 Evaluation of power quality according to EN50160 and IEC61000-2-2/4
»
 Large number of trigger functions

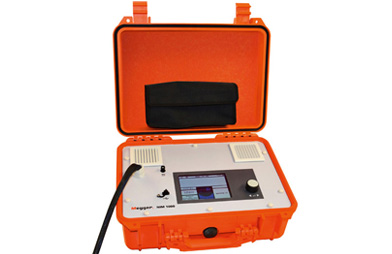

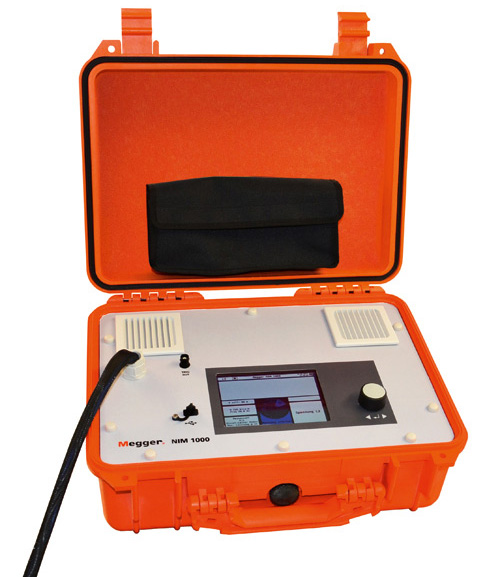

NIM 1000
The Net Impedance Meter NIM 1000 is used for impedance measurements of LV distribution networks. At the connection point, the network is tested for its ampacity under real life conditions with currents up to 1000 A. Potential weak spots are made visible. The NIM 1000 can be used for event-based actions (e.g. to determine the cause of unstable power conditions) or for preventive purposes (e.g. control measurements before or after net restructuring).

Special features :

»
 Easiest handling
»
 High test current up to 1000 A
»
 Single or three-phased measurements
»
 Measurement of the net impedance up to the 10th harmonic
»
 Display of all measured parameters
»
 Tests in accordance with DIN EN 61557-3; VDE 0413-3
