Seba » Cable Test Vans

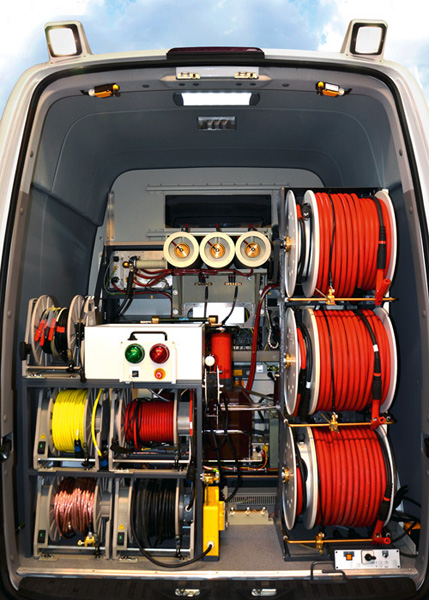

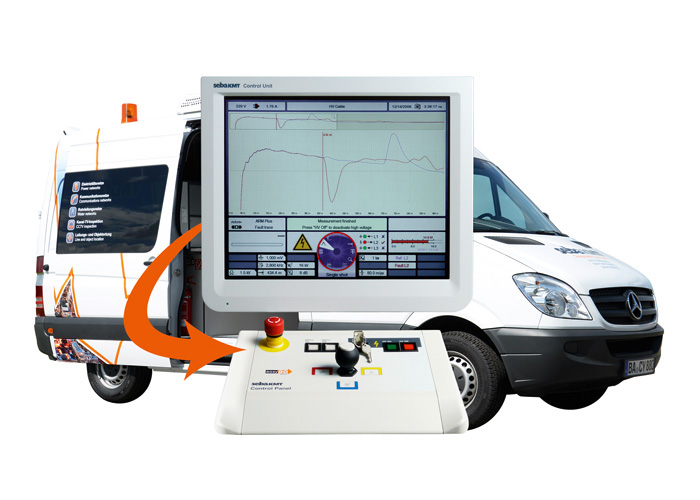

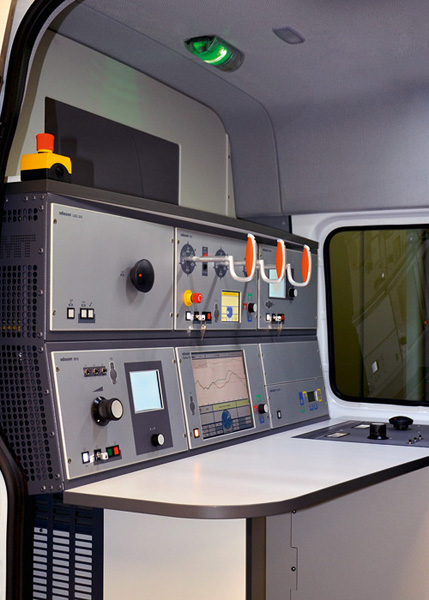

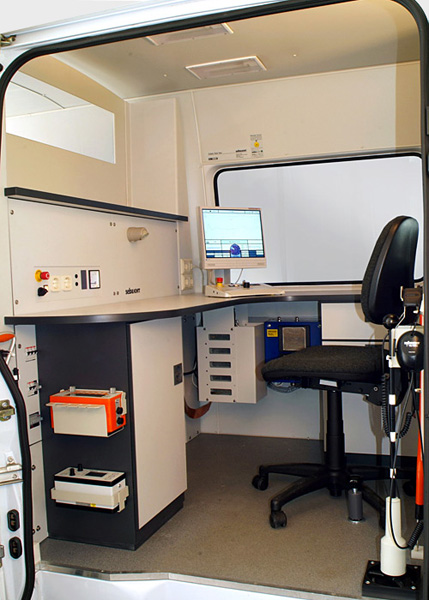

Innovative cable test vans Centrix in 1- and 3-phase Design
In cooperation with the users was developed with the Centrix a completely new test van. In this unique operating concept, the requirements and experiences of users in their daily work have been incorporated. Such a test van has been created that sets completely new standards :

»
 Fully automatic measurement and recognition of parameters
»
 Integration essentially innovative prelocation
»
 Automatic storage and logging
»
 Highest security standard
»

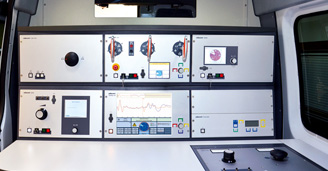

 Central control of all measurement functions Cart
»

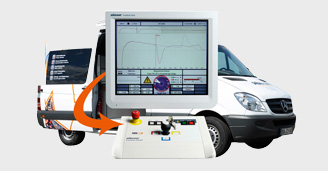

 EasyGO operating concept

All standard processes run automatically with the help of a single button control from. The operator can fully concentrate on his actual task, the fault location.

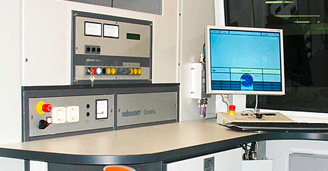

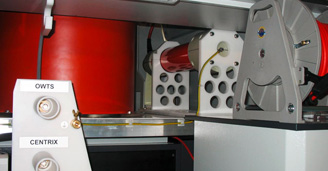

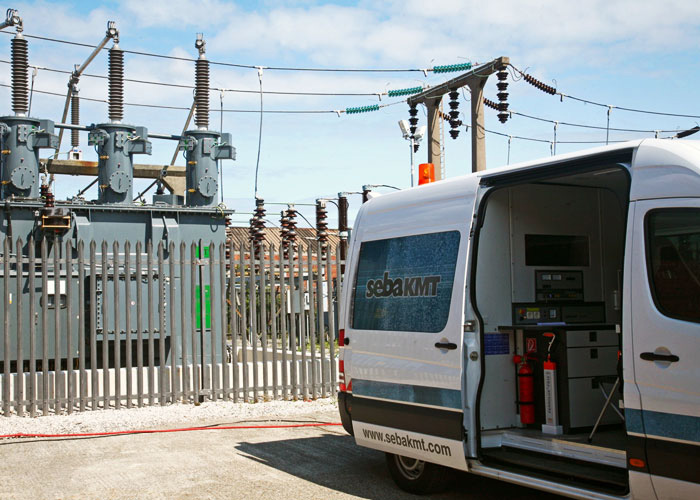

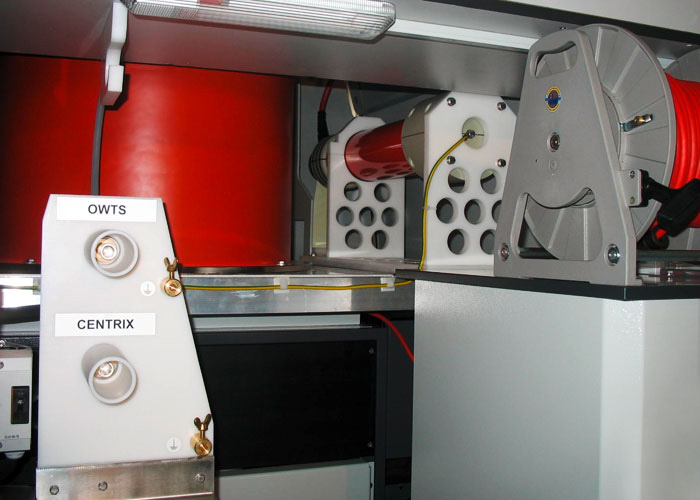

Centrix diagnosis
With the Centrix SebaKMT diagnosis, in combination with the Centrix fault location system to a fully integrated solution for all additional applications in the field of cable testing, diagnosis. As a basis for the Centrix system used in single or three-phase version up to 80 kV. These optional come a test with 0.1 Hz VLF sine in conjunction with Tan Delta diagnosis or the proven 0.1 Hz Cosine Rectangular VLF and fully integrated OWTS partial discharge diagnosis.

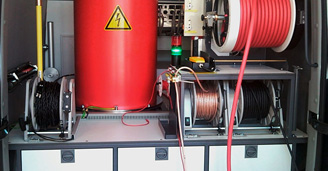

R30

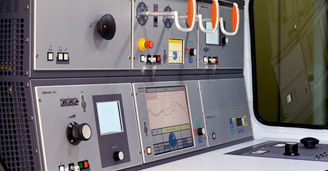

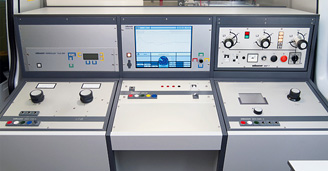

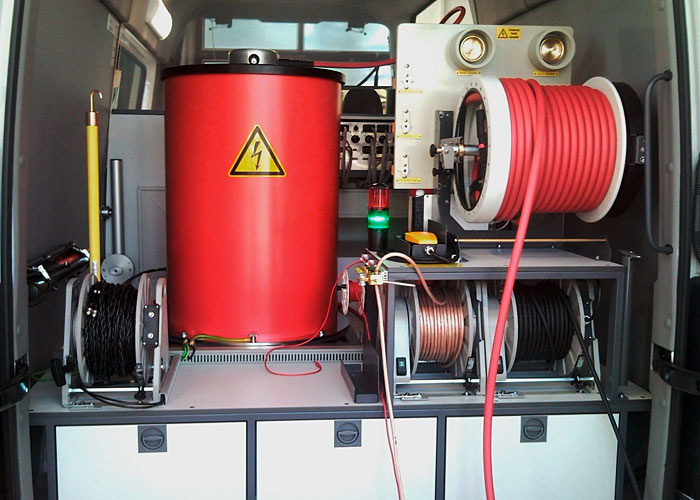

R 30, the fault location system for almost all applications

With standard 110 kV / 290 mA DC testing, 50 kV ARM-location and jerk of 3 kV to 50 kV with up to 2500 J of this system covers all requirements in the area of medium voltage to the high voltage off easily. Optionally, the system R 30 is a 0.1 Hz VLF cosine Rechteckprüfanlage with up to 70 kV rms and testable cable capacity to 5 uF, burning with 15kV / 25 A, and thrusting with 80 kV and 3200 J. For high voltage applications, there is still the option The system R30 upgrade fault location up to 400 kV DC testing in conjunction with 400 kV Decay. All modes and modes are operated by motor switch from a central controller. Like all SebaKMT systems has also the system R 30 via an extensive security system that the user ensures maximum safety when using the system.

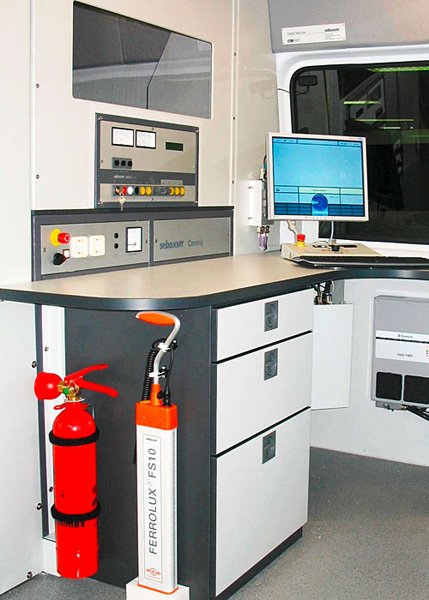

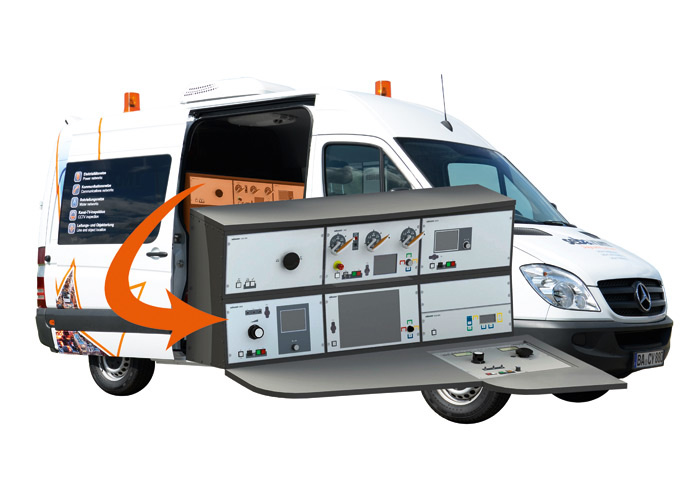

Variant

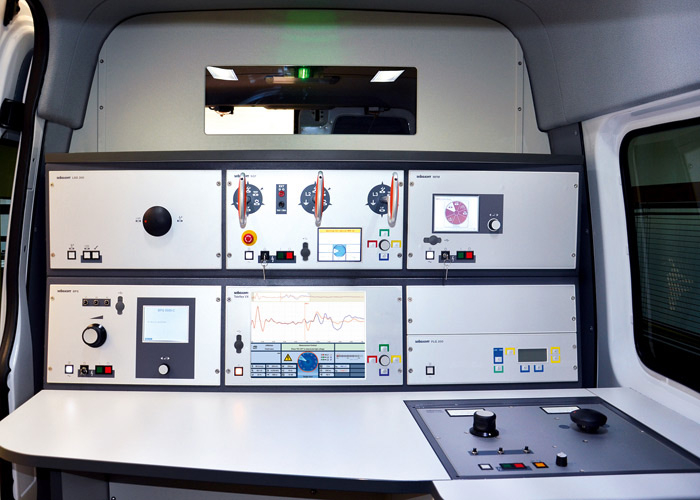

The new Variant SebaKMT has developed a test and fault location system based on proven and reliable technology and components. The Variant System is used for fault detection and can be extended for cable testing and diagnosis. During development, we have taken into account the needs of our customers and our focus on ergonomics, a simple and fast operation of the system, redundancy, and ease of service. is Just like its predecessor built the variant test and fault location system of individual components.

System components of the basic version :

»

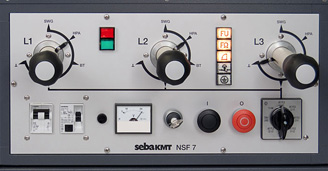

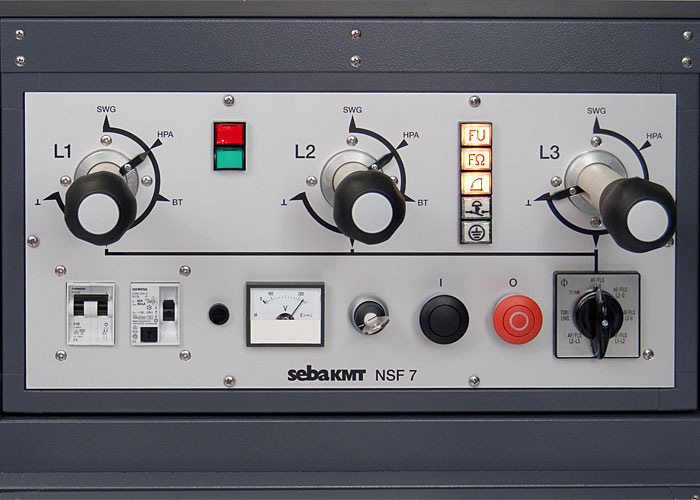

 The power panel NSF with 8 modes and phase selector switch, security system FU / EP and optical signaling
»
 the HV control unit BPS 5000 C
»
 an isolating transforme
»
 Generation of DC to 80 kV DC
»
 the Teleflex VX me ARMslide
»
 ARM filter LSG 300
»
 the surge generator SWG to 1750 C
»
 Decay-location
»
 Discharge and grounding module
»
 ICE-location

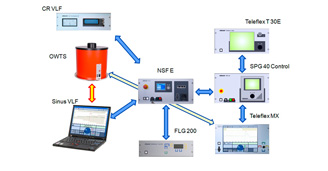

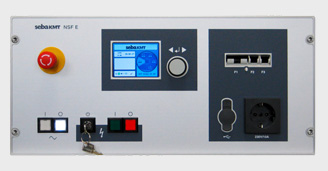

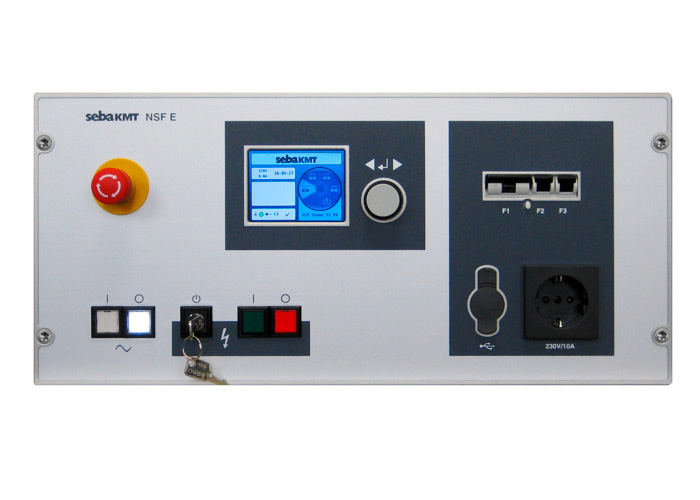

NSF E - Combi-System
The new flexible solution for the integration of portable devices into a Combi-System

The NSF E system control panel provides a way to present how to control new individual devices from a central control unit to control and unite into one system. Case, a maximum level of operator comfort and safety is guaranteed. By connecting to the system control panel, each of the devices is integrated into a control and safety concept that meets all requirements for cable diagnosis, testing and fault location needs. The power switch panel has an integrated, adaptable to the devices, and user-configurable control via rotary encoder. There are also power switch, HV On / Off, emergency stop and an integrated security system. Benefits :

»
 Can HV devices manage up to 60 kV
»
 No additional wiring required
»
 Highest security by FU / EP safety system
»
 Optional motor switch for HV outputs
»
 Multilingual display

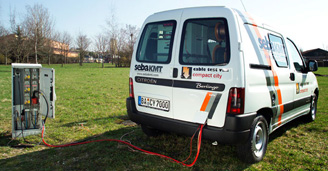

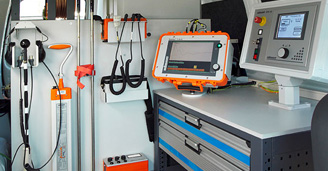

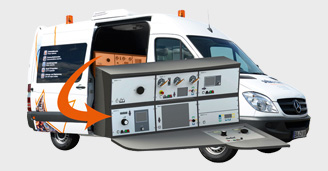

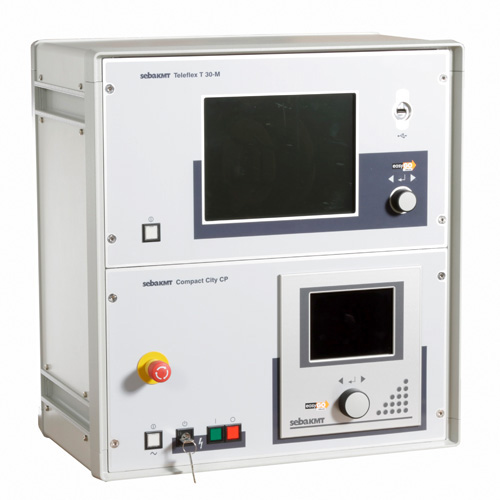

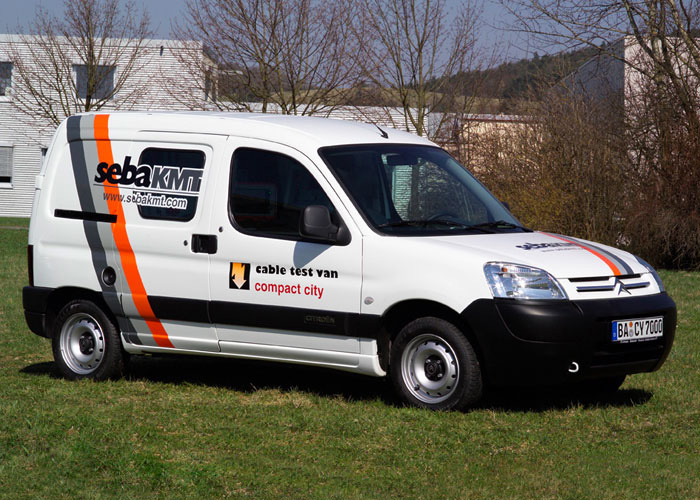

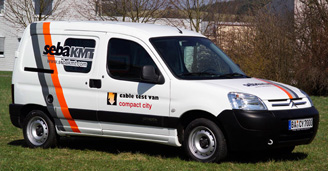

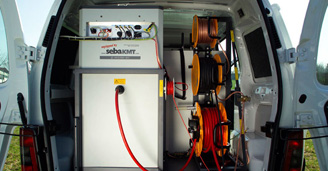

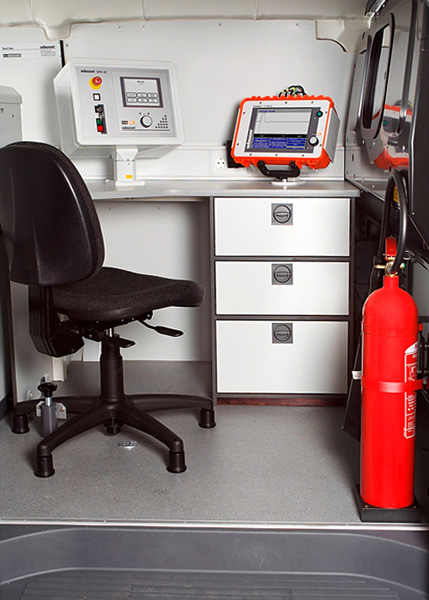

Compact City

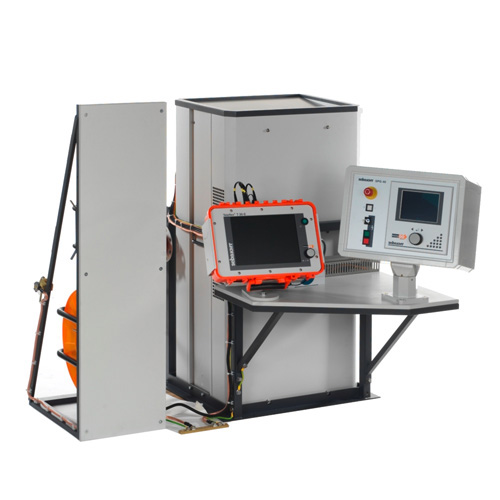

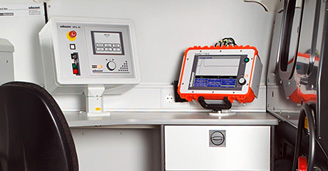

The Compact City is a complete test and fault location system that is suitable for installation in very small vehicles. It consists of the SPG 40, a mobile, multi-functional system for testing and pre- and pinpointing of cable faults in low and medium voltage networks. The control of the system either directly via the connected T 30-E reflectometer or via the control unit, integrated or in 19 "format. All functions of the system on the control panel via a rotary encoder operates in a very simple manner and so also supports inexperienced user through a simple and clear operation. Benefits :

»
 High impact energy up to 2000 J
»
 All major integrated HV-location
»
 Portable and test van installation
»
 Simple operation with maximum safety

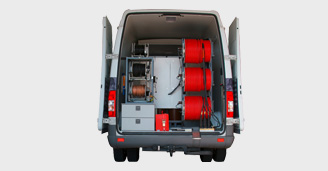

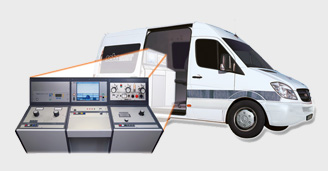

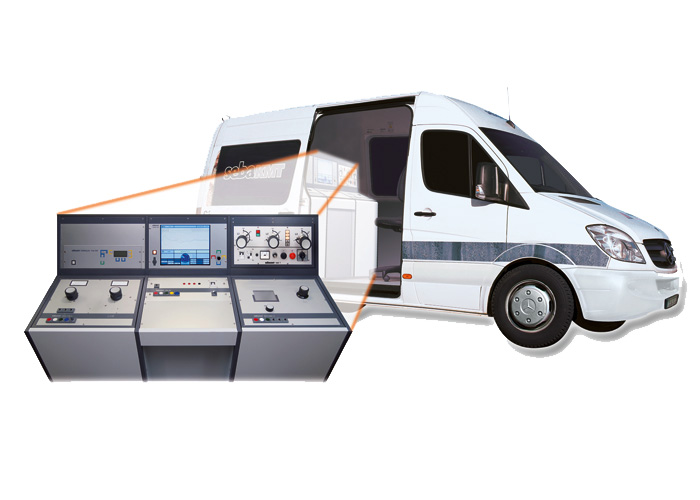

System Classic
Modular, three or single-phase system for testing and fault location in power cables in low and medium voltage networks. The Classic System offers maximum variability in the equipment variants of the cable test car. The flexibility of the system Classic allows adjustment of the parameters for cable testing, surge energy for pinpointing ., burning, and sheath faults to the specific customer requirements advantages :

»
 Locate cable faults quickly and accurately
»
 Highest security standard
»
 Adapted flexibly to the user
»
 High redundancy through integrated components
»
 High impact energy of 1750 or 3500 Joules
